Sunday, June 3, 2012

Country Bench

The only good things I have to say about this project is that it didn't cost very much (a 2x10 8' costs about $7.99), I proved that I can actually work somewhat fast with handtools (total time under 10 hrs spread out over 3 days), and it's good practice for cutting angled tenons. I ended up having to wedge the tenons because I wasn't happy with the fit between the sides of the tenons and the very edges of the mortises. Aaaaand the southern yellow pine I was using had varying wood density so I started off chopping mortises in fairly dense wood which transitioned to much being much softer and resulted in the other side blowing out huge chunks of wood even though I had the top clamped down to a board for support. Aaaand because the wood had varying density, when I dressed it down to thickness and trued it, it began bowing like crazy. I ended up clamping the board to my benchtop for a few days with the concave side up, but you can only do so much.

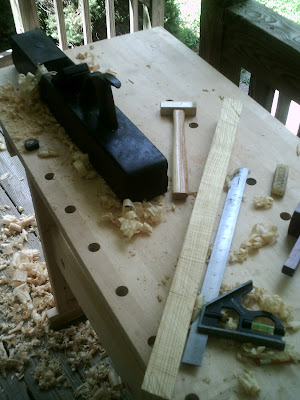

I cut off 2' from the board for the legs and then trued the 6' board and planed off 3/4" with my jack plane to a 1 1/4" thickness. I cut the legs into four 2x1.5's with a 700mm length bowsaw and then trued them with my try plane pictured below.
The mortises came next. I bored out holes for them with an auger and squared them with mortising chisels. The tenons were cut with a 5 degree angled shoulder and I had to cut a small bit off the back so that the legs would slide into the mortise without much fuss. The only thing left to do for this puppy is to cut the legs to fit and paint and seal it.

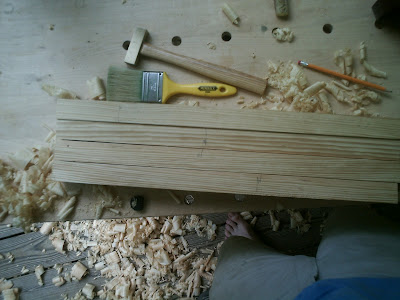

trueing the legs

lay out for the tenons
dry fit before gluing and wedging
dry fit



Muy guapo
